Inconel 625 Tube Fittings

Home > Inconel > Inconel 625 Tube Fittings

Malik Tube Fittings, a top-notch manufacturer and supplier based in Riyadh, Saudi Arabia, specializes in high-quality Inconel 625 Tube Fittings tailored for demanding industrial applications. Made from premium Inconel 625 alloy, these fittings boast remarkable resistance to corrosion, oxidation, and extreme temperatures, ensuring they stand the test of time. Renowned for their mechanical strength and durability, Malik’s Inconel 625 Tube Fittings are perfect for tough piping systems found in the oil and gas, chemical, petrochemical, power generation, and marine sectors. Built to meet international standards, they promise leak-proof connections, operational safety, and efficiency, making them a reliable choice for critical fluid handling tasks.

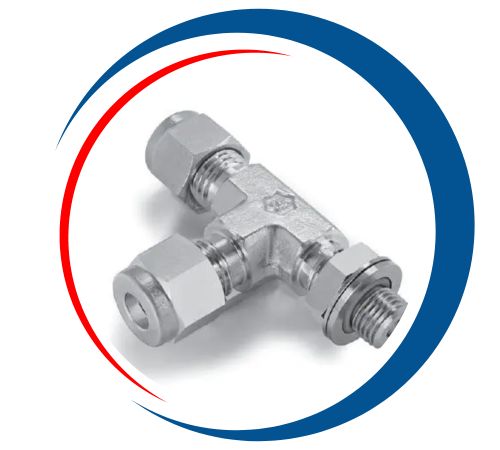

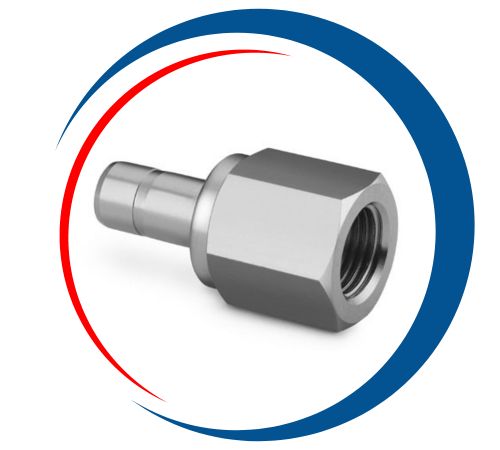

Inconel 625 Female Adapter Manufacturer in Riyadh, Alloy 625 Hydraulic Tube Fittings, Inconel 625 Female Branch Tee Exporter in Jeddah, Inconel 625 Bulkhead Female Connector Supplier in Al jubail, Inconel 625 Female Run Tee Supplier in Dammam, Inconel 625 Positionable Male Run Tee In Al jubail, Inconel 625 Tube Fittings In Dammam, Inconel 625 Male Branch Tee Price List in Ras Al Khair, Alloy 625 Tube Fittings Manufacturer in Riyadh, Inconel 625 Reducer Union Exporter in Jeddah, Saudi Arabia.

Inconel 625 Tube Fittings are crafted from a nickel-chromium-molybdenum alloy known as Inconel 625, which typically includes 58% nickel, 20–23% chromium, 8–10% molybdenum, 3–4% niobium, along with trace amounts of iron, carbon, and manganese. This unique blend offers exceptional corrosion resistance, protection against oxidation, and impressive strength at high temperatures. Mechanically, these fittings showcase high tensile and yield strength, outstanding toughness, and excellent resistance to fatigue and creep. Precision manufacturing guarantees leak-tight connections, accurate dimensions, and dependable performance under high pressure and temperature, making them ideal for challenging industrial and marine environments.

Inconel 625 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6010 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Inconel 625 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Inconel 625 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Inconel 625 Tube Fittings

Inconel 625 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Inconel 625	N06625	2.4856	NC22DNB4M	NiCr22Mo9Nb	NCF 625	NA 21	ХН75МБТЮ	ЭИ602

Inconel 625 Instrumentation Tube Fittings Price in Riyadh, Inconel 625 Male Branch Tee Supplier in Jeddah, Inconel 625 Bulk Head Female Connector Manufacturer in Al jubail, Inconel 625 Single Ferrule Tube Fittings Price in Dammam, Inconel 625 Male Run Tee Supplier And Manufacturer in Ras Al Khair, Inconel 625 Male Elbow In Riyadh, Saudi Arabia.

Largest Manufacturer and Supplier of Inconel 625 Tube Fittings in Riyadh, Saudi Arabia

Top Inconel 625 Tube Fittings Manufacturing Company in Riyadh At Malik Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Inconel 625 Tube Fittings in Riyadh, Saudi Arabia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Saudi Arabia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel 625 Tube Fittings Uses

Inconel 625 Tube Fittings are used in applications where resistance to high temperatures, corrosion and oxidation is very important. Because they can withstand extreme temperatures they are ideal for aerospace components such as jet engines, exhaust systems and turbine seals In marine engineering these components provide excellent protection against seawater corrosion, and making them for offshore platforms and underwater equipment In addition to being suitable, they are widely used in chemical plants to prevent corrosion by acid gases, providing durability and reliability if operating in areas severe
