Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Malik Tube Fittings is a well-respected manufacturer and supplier of Monel Tube Fittings based in Riyadh, Saudi Arabia. They offer top-notch solutions that prioritize reliability, durability, and resistance to corrosion. Made from high-quality Monel alloys, these fittings are perfect for critical applications where strength and resistance to harsh substances are a must. With Malik Tube Fittings, you can count on leak-proof connections, a long lifespan, and outstanding performance, making them a go-to choice in industries like oil and gas, marine, petrochemical, chemical, and power generation.

Monel Tube Fittings Price in Riyadh, Monel Instrumentation Fittings Supplier in Jeddah, Monel Alloy Double Ferrule Fittings Manufacturer in Al jubail, Monel Alloy Branch Tees Price in Dammam, Monel Female Elbow Dealer in Jeddah, Monel Hydraulic Tube Fittings Supplier in Ras Al Khair, Monel Blanking Plug Supplier And Manufacturer in Ras Al Khair, Monel Union Tee In Riyadh, Saudi Arabia.

Monel Tube Fittings primarily consist of nickel (about 63%) and copper (28–34%), along with small amounts of iron, manganese, and silicon that boost their mechanical strength and resistance. This unique blend offers excellent protection against seawater, acids, alkalis, and oxidizing environments. They showcase impressive tensile and yield strength, remarkable toughness, and stability under extreme pressures and temperatures, ensuring dependable and long-lasting performance even in the toughest conditions.

Monel Tube Fittings Specifications

Monel Tube Fittings specification (ASTM / ASME)	ASTM B366/ ASME SB366
Working Pressure	Up to 6,000psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Monel Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Monel 400 Tube fittings
Monel Tube Fittings Special sizes	22mm Monel tube fittings 25mm Monel 400 tube fittings 32mm Monel K500 tube fittings 50mm Monel Ferrule tube fittings
End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Monel Ferrule Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Brand Name	Monel Tube fittings
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Applicable Temperature	150-400°C
Monel Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Equivalent Grades of Monel Tube Fittings

STANDARD	AFNOR	UNS	BS	WERKSTOFF NR.	GOST	JIS	EN
Monel K500	–	N05500	–	2.4375	–	–	–
Monel 400	NU-30M	N04400	NA 13	2.4360	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe

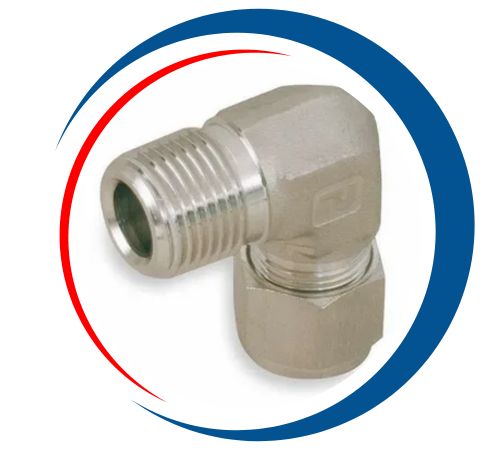

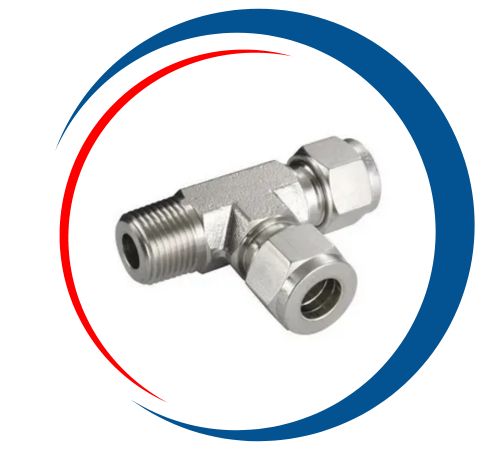

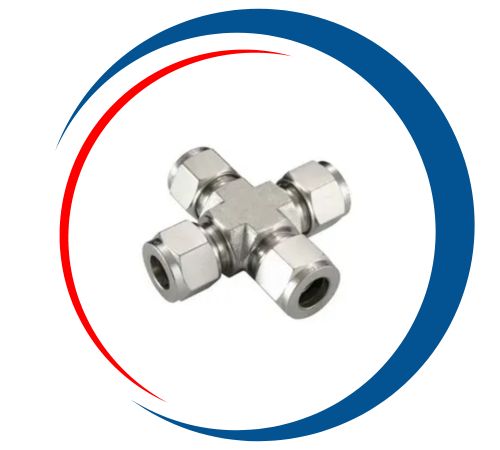

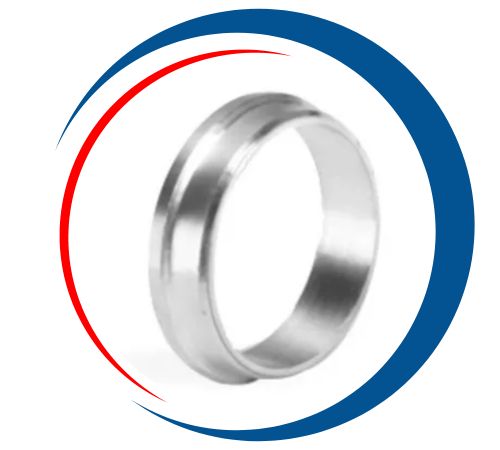

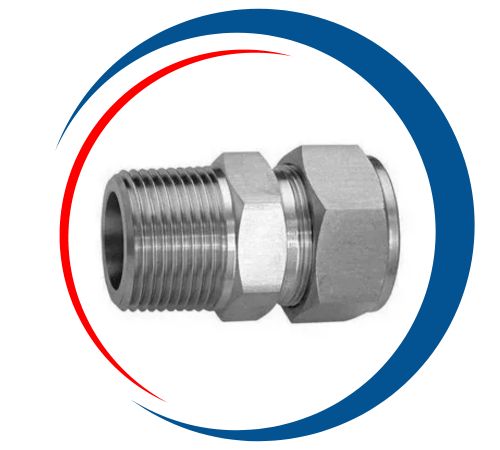

Types of Monel Tube Fittings

Dimension of Monel Tube Fittings

OD	OD Actual	Thread Designation – Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT	BSP
5/16	0.3125	1/16	27	28
13/32	0.405	1/8	27	28
35/64	0.540	1/4	18	19
43/64	0.675	3/8	18	19
27/32	0.840	1/2	14	14
1-3/64	1.050	3/4	14	14
1-5/16	1.315	1	11-1/2	11
1-21/32	1.660	1-1/4	11-1/2	11
1-29/32	1.900	1-1/2	11-1/2	11
2-3/8	2.375	2	8	11
2-7/8	2.875	2-1/2	8	11
3-1/2	3.5	3	8	11
4	4.0	3-1/2	8	11
4-1/2	4.5	4	8	11
5-5/8	5.563	5	8	11
6-5/8	6.718	6	8	11

Monel Male Bulkhead Connector Manufacturer in Riyadh, Monel Hydraulic Fittings Exporter in Jeddah, Monel Single Ferrule Compression Fittings Supplier in Al jubail, Monel Flared Tube Fittings Supplier in Dammam, Monel Union Cross In Al jubail, Monel Instrumentation Fittings In Dammam, Monel Bulkhead Union Price List in Ras Al Khair, Monel Ferrule Tube Fittings Manufacturer in Riyadh, Monel Alloy Compression Tube Fittings Exporter in Jeddah, Saudi Arabia.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Tube Fittings in Riyadh, Saudi Arabia

At Malik Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Monel Tube Fittings in Riyadh, Saudi Arabia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Saudi Arabia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Monel Tube Fittings Uses

These fittings are widely used in sectors where secure and durable connections for fluids or gases are essential. In marine and offshore applications, they effectively resist corrosion from seawater. In the oil and gas industry, they are crucial for high-pressure systems dealing with aggressive substances. Chemical and petrochemical facilities depend on them for safely transporting corrosive fluids, while the power generation and aerospace sectors appreciate their durability and stability. Thanks to their versatility, strength, and corrosion resistance, Monel Tube Fittings are the preferred choice for complex and demanding industrial needs.
