Home > Hydraulic Equal Cross

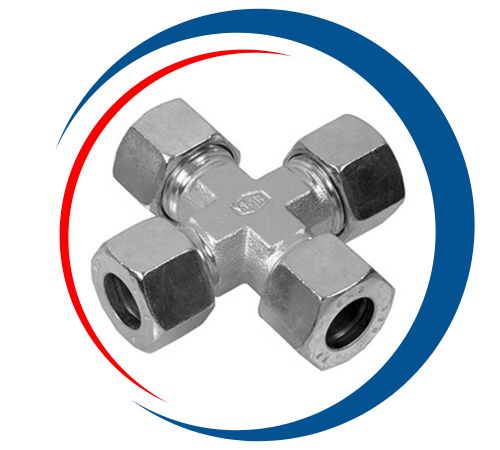

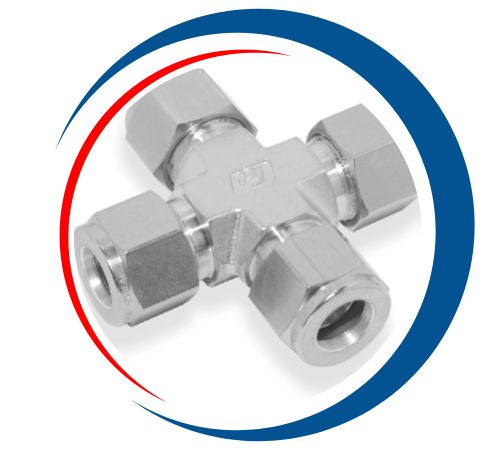

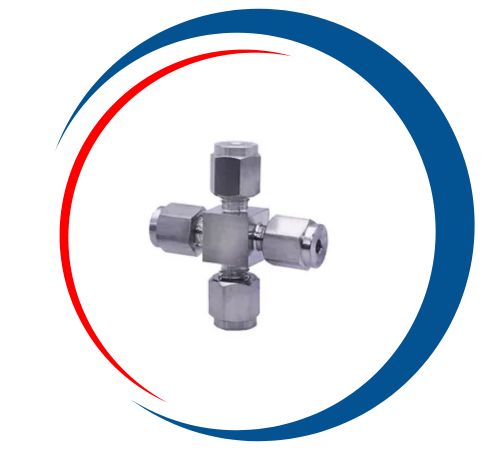

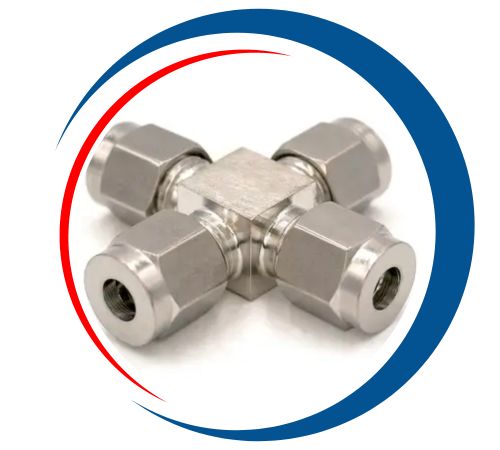

Malik Tube Fittings stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, specializing in high-quality Hydraulic Equal Crosses that ensure reliable fluid distribution in high-pressure hydraulic systems. These fittings are expertly engineered to connect four pipes of the same diameter, promoting consistent flow and pressure throughout the system. Crafted from premium materials and meeting international standards, Malik’s hydraulic equal crosses guarantee leak-proof performance, durability, and resistance to corrosion. They are widely utilized in industrial machinery, oil and gas, construction equipment, and power generation systems, boosting operational efficiency, safety, and long-term reliability.
Hydraulic Equal Crosses are generally made from high-strength carbon steel, alloy steel, or stainless steel, designed to endure high-pressure hydraulic applications. They showcase impressive tensile and yield strength, outstanding fatigue resistance, and durability under both mechanical and thermal stress. With precision machining, these fittings achieve dimensional accuracy, consistent wall thickness, and leak-tight connections, which help minimize pressure loss and turbulence. Their robust mechanical properties, along with corrosion resistance, make these fittings perfect for maintaining system integrity and ensuring dependable performance in challenging industrial, mobile, and offshore hydraulic applications.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE |
| BODY TYPE | FORGED, BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| EQUIVALENT BRANDS | PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS |
| APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
At Malik Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Equal Cross in Riyadh, Saudi Arabia. Our advanced manufacturing facilities, strategically positioned in the Saudi Arabia, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Thread | CH | L1 | L2 | T1 | Pressure PN | Weight kg 100pcs | Series |
|---|---|---|---|---|---|---|---|
| Thread F1 | mm | mm | mm | mm | bar | ||
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 7,8 | L |
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 7,8 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 11,0 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 11,0 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 15,7 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 15,7 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 19,5 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 19,5 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 31,5 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 31,5 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 48,7 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 48,7 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 73,0 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 73,0 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 101,5 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 101,5 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 123,5 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 123,5 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 176,5 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 176,5 | L |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 13,0 | S |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 13,0 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 17,0 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 17,0 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 24,2 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 24,2 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 30,1 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 30,1 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 39,0 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 39,0 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 49,0 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 49,0 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 76,0 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 76,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 138,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 138,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 172,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 172,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 269,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 269,0 | S |
Contact us to get a quick quote for your requirement.
Malik Tube Fittings is a leading supplier and stockist of premium Hydraulic Equal Cross in Riyadh, Saudi Arabia. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
Hydraulic equal crosses are widely used in hydraulic systems to connect multiple pipes or hoses at a single junction, facilitating fluid flow in various directions. Common applications include construction machinery, agricultural equipment, and industrial hydraulic systems. They are also utilized in automotive systems for power steering and brake lines. These fittings help maintain balanced pressure and ensure efficient fluid transfer, making them essential for systems requiring reliable operation and minimal pressure loss. Additionally, they support versatility in design, allowing for complex piping layouts in confined spaces.
Please feel free to contact us if you need any further information or for enquiry.
