PP Ball Valve

Home > PP Ball Valve

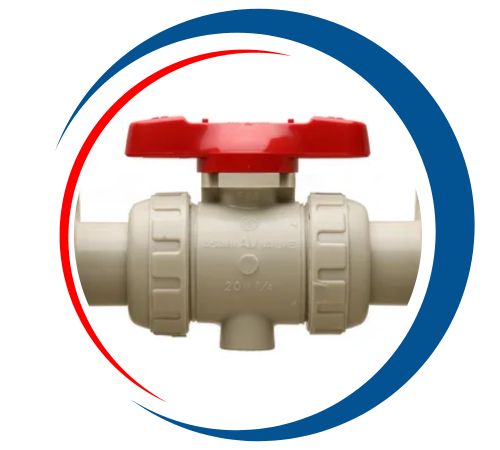

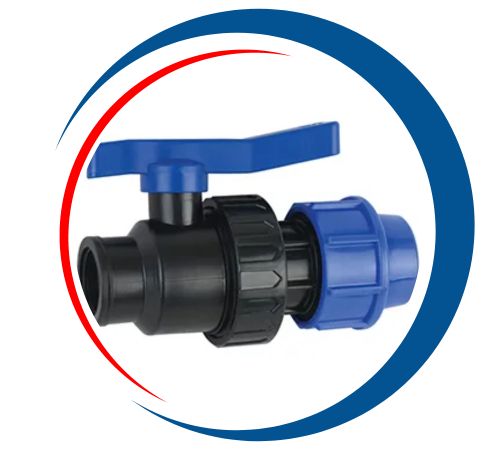

Malik Tube Fittings stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, specializing in high-quality PP Ball Valves that ensure reliable flow control and leak-proof performance in various chemical, water, and fluid handling systems. These valves are known for their excellent chemical resistance, lightweight design, and impressive durability, making them perfect for tough and corrosive environments. Crafted with precision and adhering to international standards, PP Ball Valves find their place in industries like chemical processing, pharmaceuticals, food and beverage, water treatment, and power generation, all while guaranteeing safe and efficient fluid management.

PP ball valve Manufacturer In Riyadh, PP ball valve In Jeddah, PP ball valve Al jubail, PP ball valve Dammam. PP ball valve Jebel Ail, PP ball valve Supplier In Riyadh, Saudi Arabia.

Polypropylene (PP) ball valves are made from a thermoplastic polymer, providing excellent chemical resistance and lightweight properties. They feature a spherical closure element that allows for quick on-off flow control. The mechanical properties of PP include good tensile strength, impact resistance, and flexibility, making them suitable for various applications, including water treatment and chemical processing. Advantages of PP ball valves include corrosion resistance, low maintenance, cost-effectiveness, and the ability to operate at lower temperatures. Their durable design ensures long-lasting performance in demanding environments.

PP Ball Valve Specifications

Material Of Construction	Unplasticized Poly Vinyl Chloride	Construction	Multi Piece Body
Design	Single body moulded	Test pressure	07 kg./cm2
Max working temp	60 c (consistently)	Size Range	15 m to 80 mm
Connection End	Solid Plain and Ball Valve	Standard	As per requirement

PP Flange End Ball Valve Material of Construction

Material Specification
No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body”O”Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem “O” Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Polypropylene Flange End Ball Valve Dimensions

Size		L	T	OD	ID	H1	H
In.	MM
1/2″	15MM	129	12.5	100	13.5	130	69
3/4″	20MM	142	14	101	19	131	75
1″	25MM	160	20	123	24	165	89
1 1/2″	40MM	182	20	140	38	197	109
2″	50MM	208	22	165	50	200	121
2 1/2″	65MM	230	25	185	63	255	144
3″	80MM	251	25	201	75	255	150
4″	100MM	302	28	228	100	350	182
6″	150MM	428	30	300	150	–	236
8″	200MM	505	32	360	201	–	325
10″	250MM	570	34	425	242	–	310
12″	315MM	590	35	487	300	–	309

Top PP Ball Valve Manufacturing Company in Riyadh

At Bhavesh Tube Fittings, we are a leading supplier, manufacturer, and exporter of PP Ball Valve in Riyadh, Saudi Arabia. Our state-of-the-art manufacturing facilities, strategically located in the Saudi Arabia, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

Types of PP Ball Valve

PP ball valve Manufacturer In Riyadh, PP ball valve In Jeddah, PP ball valve Al jubail, PP ball valve Dammam. PP ball valve Jebel Ail, PP ball valve Supplier In Riyadh, Saudi Arabia.

Largest Manufacturer and Supplier of PTFE Ball Valve in Riyadh, Saudi Arabia

Malik Tube Fittings is a leading supplier and stockist of premium PTFE Ball Valve in Riyadh, Saudi Arabia. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

PTFE Ball Valve Uses

PP Ball Valves are widely utilized in sectors where chemical resistance and secure flow control are essential. You’ll often find them in chemical plants, pharmaceutical production lines, food and beverage systems, water treatment facilities, and laboratory settings. Their lightweight nature, straightforward installation, and low maintenance needs make PP Ball Valves an excellent option for long-lasting, safe, and efficient operation in demanding fluid handling scenarios.
