Monel 400 Needle Valve

Home >Monel >Monel 400 Needle Valve

Malik Tube Fittings stands out as a top manufacturer and supplier of Monel 400 Needle Valves in Riyadh, Saudi Arabia, delivering high-quality flow control solutions that are built to last and perform with precision. Crafted from premium Monel 400, these needle valves boast remarkable resistance to seawater, acids, alkalis, and other corrosive substances. With a design focused on leak-proof operation and fine flow regulation, Malik Tube Fittings’ Monel 400 Needle Valves are a trusted choice across the oil and gas, marine, chemical, petrochemical, and power industries, ensuring safe, reliable, and long-lasting performance.

Monel 400 Bleed Needle Valves Supplier in Riyadh, UNS N04400 Needle Valve Price List in Jeddah, Alloy 400 Industrial Needle Valve Manufacturer in Al jubail, Monel 400 Gauge Valves in Dammam, DIN 2.4360 Needle & Gauge Valves Exporter in Jeddah, Monel 400 Screwed End Needle Valve Manufacturer in Ras Al Khair, Monel 400 Hydraulic Needle Valve In Riyadh, Saudi Arabia.

These needle valves are made up of about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, and silicon to boost their mechanical strength and resistance. This unique composition offers excellent protection against oxidation, stress-corrosion cracking, and pitting in harsh environments. Mechanically, they showcase high tensile strength, good yield strength, and impressive toughness, guaranteeing dependable performance even under high pressure and extreme temperatures, making them perfect for critical industrial systems.

Monel 400 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, DK-LOK, HAMLET, OLIVER VALVES, HOKE
MATERIAL	MONEL 400

Monel 400 Needle Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel 400	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Monel 400 Needle Valve Mechanical Properties

Element	Yield Strength (0.2%Offset)	Melting Point	Density	Elongation	Tensile Strength
Monel 400	Psi – 35,000 , MPa – 240	1350 °C (2460 °F)	8.8 g/cm3	40 %	Psi – 80,000 , MPa – 550

Top Monel 400 Needle Valve Manufacturing Company in Riyadh

At Malik Tube Fittings, we are the largest supplier, manufacturer, and exporter of Monel 400 Needle Valve in Riyadh, Saudi Arabia. Our advanced manufacturing facilities, strategically positioned in the Saudi Arabia, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

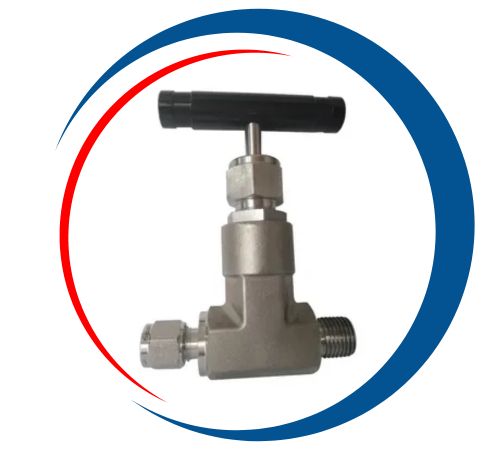

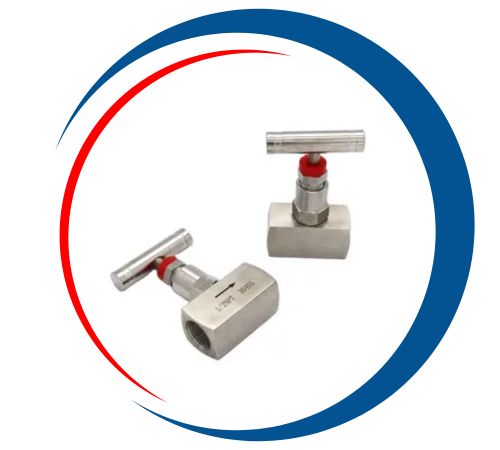

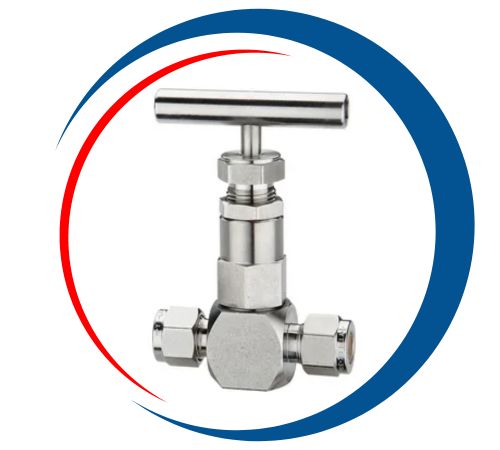

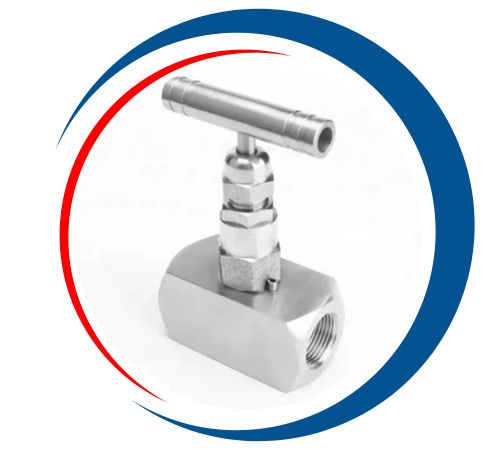

Types of Monel 400 Needle Valve

Monel 400 Needle Valve Equivalent

STANDARD

WNR Material Number

UNS

JIS

GOST

AFNOR

Monel 400

2.4360

N04400

NW 4400

NA 13

МНЖМц 28-2,5-1,5

NU-30M

NiCu30Fe

Monel 400 Screwed End Needle Valve Price in Riyadh, UNS N04400 Monel 400 Hydraulic Needle Valve Supplier in Jeddah, DIN 2.4360 400 Monel Parker Needle Valve Manufacturer in Al jubail, Monel 400 Gauge Vent Valves Price in Dammam, Monel Alloy 400 Multiport Gauge Valves Supplier And Manufacturer in Ras Al Khair, Monel 400 Gauge Valve In Riyadh, Saudi Arabia.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Monel 400 Needle Valve Supplier in Riyadh, Saudi Arabia

Malik Tube Fittings is a leading supplier and stockist of premium Monel 400 Needle Valve in Riyadh, Saudi Arabia. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Monel 400 Needle Valve Uses

Monel 400 Needle Valves find extensive application in industries that demand precise flow regulation and corrosion resistance. In oil and gas operations, they ensure accurate control of fluids and gases in challenging conditions. In marine and offshore settings, they effectively resist seawater corrosion. Petrochemical and chemical processing plants depend on them for managing aggressive fluids, while power generation facilities utilize them in steam and heat systems. Their durability, precision, and robust design make Monel 400 Needle Valves an essential component in today’s industrial landscape.
